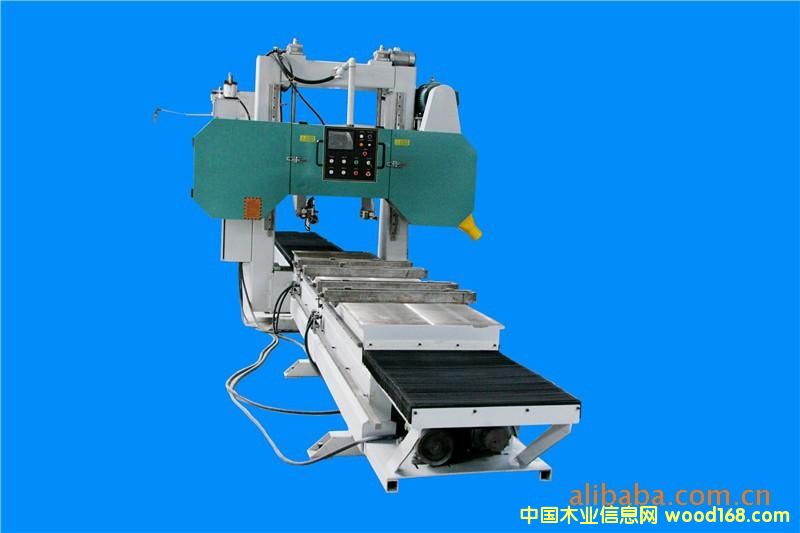

龍門鋸MJR4000X700

技術參數(shù)  Technical parameters

型號 model                                             MJR4000*700

最大加工尺寸（Maximum processing size）                4000*700*700mm

工作臺尺寸 (Table size)                                4000*700mm

固定木料夾具（Fixed wood fixtures）                      4個

送料速度(Feeding speed)                                0-6m/min

鋸輪直徑(Saw wheel diameter)                            711mm

鋸輪電機（Saw wheel motor）                            18.5kw

液壓壓力（Hydraulic pressure）                           100kg/cm²

鋸條尺寸（長*寬*高）Bad dimensions(length*width*height)    5430*34*0.9mm

鋸路 Saw Road                                         1.1-2.0m

外形尺寸（長*寬*高）Dimensions(length*width*height)       8000*2405*2400mm

凈重Net weight                                           3800kg
